Industry Paper Slitter Rewinder Machine Pneumatic Brake Double Cutter Division

Name: Industry Paper Slitter Rewinder Machine Pneumatic Brake Double Cutter Division
Brand: Tiansheng
Price: 1 USD

Wholesale Industry Paper Slitter Rewinder Machine Pneumatic Brake Double Cutter Division from china suppliers

Brand Name : Tiansheng

Model Number : 1600A

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : Price negotiation

Payment Terms : L/C, T/T

Supply Ability : 10+SET/SETS+per month

Delivery Time : 40-45

Packaging Details : All with stretch film machine, into the container.

Type : Slitting rewinder

Weight : 900kg

Dimension(l*w*h) : 2300*2400*1600

Voltage : 380V/50HZ

Power(w) : 5.5kw

Width of base paper : 1600（mm）

Diameter of base paper : Φ1200（mm）

Diameter of rewinder : Φ750mm

Contact Now

1600A Economic Automatic paper roll slitter rewinder machine

Machine introduction

1. The paper is loaded on the paper by pneumatic lifting. This paper loading method saves labor and is simple and easy to operate.
2. The braking method is pneumatic braking. The brake pressure can be quickly adjusted according to the size of the paper roll, so that the winding can reach the same tightness.
3. The main motor is Hengshui Yongshun 5.5kw force magnetic speed-regulating motor. The cutting speed can be adjusted according to different quality paper.
4. The winding method of the paper is an air-swelling retracting type. Inflatable shaft delivery completely avoids the phenomenon of the conventional delivery roll and shaft disengagement. At the same time, the delivery of the paper with double air-expanded shaft delivery also avoids the phenomenon of overlapping paper strips due to the gram of base paper.

Machine parameters

Technical parameter
Width of base paper	1600(mm)
Diameter of base paper	Φ1200(mm)
Diameter of rewinder	Φ750mm
Slitting width	>30(mm)
Slitting capability	80-600g
Motor power	5.5kw
Slitting knife	18sets
Rewinding way	Gas up outside the closed
Speed of adjust and control	Magnetic force
Speed of Slitting	1-150(m/min)
Power input	380V/220V
Operator	1

Industry Paper Slitter Rewinder Machine Pneumatic Brake Double Cutter Division

Product Tags:

paper roll slitting & rewinding machine

paper slitting and rewinding machine

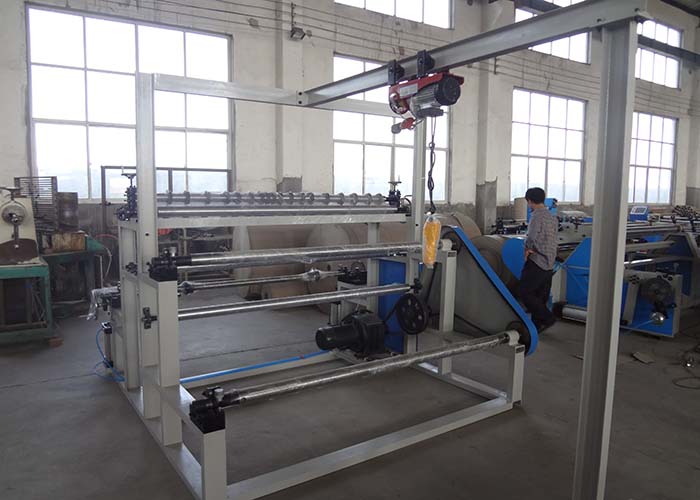

Industry Paper Slitter Rewinder Machine Pneumatic Brake Double Cutter Division Images
