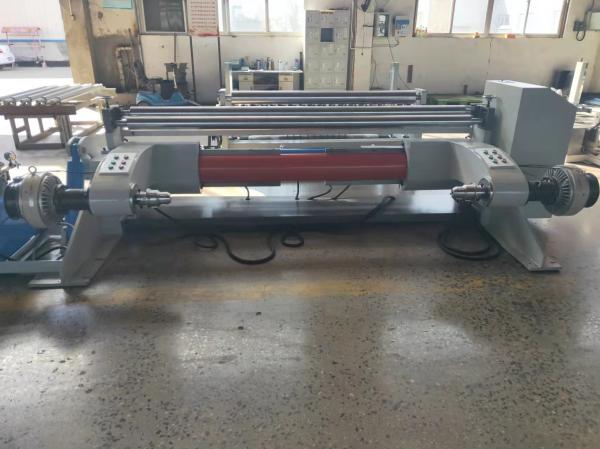

High Speed Jumbo 380v Kraft Paper Slitting Machine

Name: High Speed Jumbo 380v Kraft Paper Slitting Machine
Brand: Tiansheng
Price: 1 USD

Brand Name : Tiansheng

Model Number : 1600D

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : Price negotiation

Payment Terms : T/T

Supply Ability : 10+SET/SETS+per month

Delivery Time : 40-45

Packaging Details : All with stretch film machine, into the container.

Name : High Speed Jumbo Kraft Paper Roll Cutter Slitter Rewinder Cutting Rewinding Slitting Machine

Type : Slitting rewinder

Weight : 4400kg

Voltage : 380V/50HZ

Power(w) : 11kw

Tension adjustment : Pneumatic brake

Paper loading method : Hydraulic Shaftless support

Unloading method : Hydraulic blanking

Contact Now

High Speed Jumbo Kraft Paper Roll Cutter Slitter Rewinder Cutting Rewinding Slitting Machine

1. Adopts PLC control system and modular electrical layout design system
2. Equipped with automatic variable speed cutting machine and automatic tracking cutting, which make the paper roll more flatten ans smooth
3. The machine has reasonable design , stable performance, easy operation, stable running

paper roll slitter rewinder machineTechnical Parameters

Base paper width	1600(mm)
Diameter of base paper	1200(mm)
Rewinding diameter	1200(mm)
Slitting width	>35(mm)
Base paper weight	80-600g
Number of cutters	18pcs
Slitting speed	1-300(m/min)
Speed control	Frequency control
Main power	11kw
total weight	4400kg
Control System
Main motor	11kw
Electrical components	Chint/Omron
Button/emergency stop	Siemens
Cylinder components	Airtac/Tianao
Hydraulic system	Energy /Robicon
Configuration device
Tension adjustment	Automatic magnetic powder brake
Paper loading method	Hydraulic Shaftless support
Unloading method	Hydraulic blanking
Winding method	Gas up outside the closed
Knife adjustment method	CNC tool adjustment
application tools	1set
