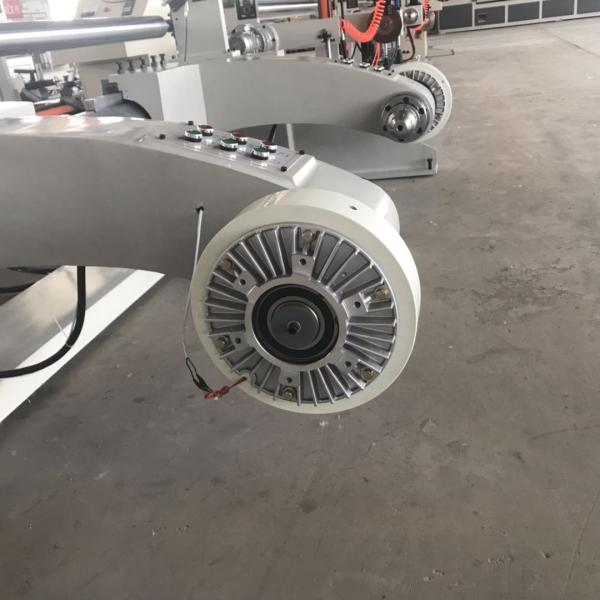

15kw 220v Slitter Rewinder Machine Automatic Magnetic Powder Brake 1600D

Name: 15kw 220v Slitter Rewinder Machine Automatic Magnetic Powder Brake 1600D
Brand: Tiansheng
Price: 1 USD

Brand Name : Tiansheng

Model Number : 1600D

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : Price negotiation

Payment Terms : L/C, T/T

Supply Ability : 10+SET/SETS+per month

Delivery Time : 40-45

Packaging Details : All with stretch film machine, into the container.

Parent roll width : 1600(mm)

Parent roll diameter : 1200(mm)

Rewind diameter : 1200(mm)

Slit width : >35(mm)

Slitting capability : 80-600g

main power : 15kw

Contact Now

TSFQ-1600D CNC tool setting Automatic High Speed paepr Slitter rewinder Machine

Machine introduction

1. The paper feeding method is shaftless hydraulic paper feeding, which is stable and replaces the traditional paper feeding with shaft, which makes paper feeding faster and saves labor. The clamping is also a hydraulic device, which replaces the electric clamping to relax. The hydraulic clamping is not easy to damage the inner core of the paper shaft and also protects the mechanical part.
2. The independent leveling shaft can reduce the phenomenon of inconsistent tightness on the left and right of the partial gram paper.
3. The hydraulic system is a special product, which is a professional hydraulic paper loading system. It has low noise and strong practicability.
4. The separate paper separation section provides sufficient space for the operator to adjust the cutter and pull the paper. The fixedness of the bedknife avoids the "S" bending disease of the slitting paper.

Technical parameter

Technical parameter
Parent roll width	1600(mm)
Parent roll width	1200(mm)
Rewind diameter	1200(mm)
Slit width	>30(mm)
Slitting capability	80-600g
The main power	15kw
Paper on the way	Full Hydraulic Shaftless Support
Number of cutter	18pcs
Winding way	Gas up outside the closed
Paper down the way	Hydraulic pressure
Blastment wayde adjust	CNC tool setting
Control of motor speed control	Frequency control
Cutting speed	1-300(m/min)
The input power	380V 220V
Operator	1

15kw 220v Slitter Rewinder Machine Automatic Magnetic Powder Brake 1600D

Packaging Details

All with stretch film machine, pulley or forklift truck towed to the wooden pallets, into the container.

Automatic Core Paper Making Machine is with Flexible wrapping and wooden case.It is included one year guarantee time,whole life technical support,a set of tools and a box of vulnerable parts.
